Super bumpers

High resistance rubber bumpers, flush mount or raised.

High resistance rubber and suitable screw fixing system guarantee high resilience of the Super bumpers.

The super bumper absorbs the impact of the retracting vehicle in order to protect the platform and the ramp.

If the slope of the yard is 2% towards the outside, the bumper is not damaged by the vertical movement of the vehicle during loading.

If the slope of the yard is towards the dock, there is a strong friction during loading. In this case we would recommend choosing the strongest bumpers, complete with steel reinforcing protectors.

If the vehicle surmounts the platform, bumpers can be damaged when the vehicle is loaded and lowers onto the platform. In this case, we strongly recommend installing the elevations that rise the position of the bumpers for about 150 – 300 mm.

DIMENSIONS

• Width 150 mm
• Height 400 mm
• Thickness 80 mm (RUBBER)

ELASTIC ELEMENT

Industrial rubber-based elastomer with good characteristics of resistance to abrasion, aging and atmospheric agents, hardness 55 shore.

SUPPORT

Included in the prefabrications or supplied for direct applications on the curb, in this case, increasing the thickness is necessary with an appropriate support, therefore bringing the total thickness to 130 mm.

INSTALLATION

The Super bumpers are screwed to sleeves predisposed either in the concrete casting, or in the Campisa prefabrications, as well as in the Campisa carpentry docks and in the Campisa Dock Houses.

Screwing allows easy assembly and disassembly for maintenance.
In traditional pits and pre-existing structures, the super bumpers can be fixed using wall plugs or dowels.

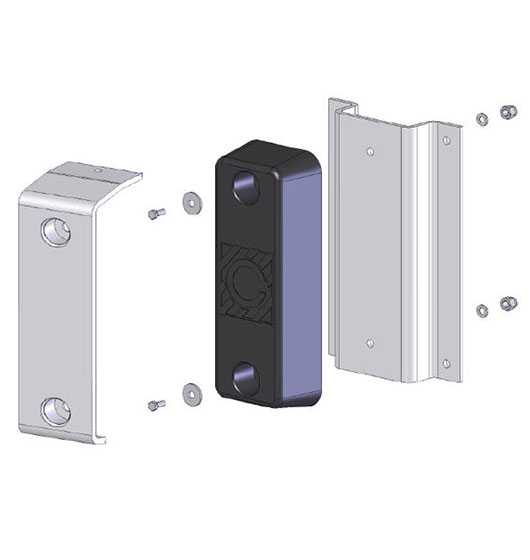

The super bumpers can be completed with the following optional accessories:

• Front rubber protection plate, made of 15 mm thick hot-dip galvanized steel.
• Raising support, elevating the bumper above the dock level by 150 mm (other sizes available on request).
