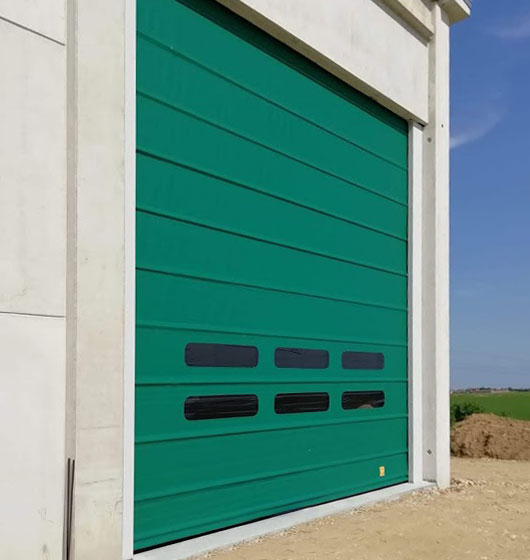

Pocket smart rapid folding doors

Rapid folding doors with belt lifting system made with hot-dip galvanized fabric metal, assembled without welding.

The Smart Pocket rapid folding doors are equipped with leaf reinforcing pipes which vary in quantity and size according to the number of sectors and dimensions of the compartment.

This reinforcement allows exceptionally wide dimensions and high resistance to wind pressure, making this door suitable for installation on the whole front area of the building.

STRUCTURE

The SMART POCKET folding door includes:

Galvanized steel structure with anti-noise brushes on the vertical posts.

700 g/m² polyester fabric cover, with horizontal tubular reinforcements that guarantee excellent wind resistance.

A transparent PVC window at eye level, (additional windows are optional).

The door is available in a wide range of RAL colors both for standard sheets and insulated sheets.

GEAR MOTOR

The gearmotor, 400V three-phase, 50Hz, 0.5 kW, IP 55, is complete with electromechanical brake, electronic programmer and three-phase plug connector to the power supply. The larger doors have oversized gearmotor and controls.

A crank for emergency opening is positioned under the gearmotor, and it’s maneuverable from the ground.

CONTROLS AND SAFETY DEVICES

The main panel is inside a box with IP55 protection, it is pre-wired to the gearmotor and includes an emergency switch.  In case of emergency the motor and the panel can be easily controlled, and the door can be totally opened. (For large and high doors, an aerial walkway is foreseen and allows direct control of the motors on top of the structure).

Photocell barriers and a wireless safety rib, incorporated in lower edge of the fabric, are also installed for safety purposes. All controls are according to CE standards,

WIND RESISTANCE

Standard doors can be in Class 0, Class 1 or Class 2 as needed

• Additional windows (one is standard).
• Additional wireless opening controls.
• Additional safety devices.
• Kit for installation within walls-opening.
• Stainless steel and insulated executions.
• Personalized logo and texts on request.

Rapid fold-up doors are manufactured in compliance with the EN 13241 Product Standard and complete with CE marking.

• “Sensitive edge”: a polarized light reflection photocell that requires wiring only on one side of the device.
• A row of windows at eye level

The nominal dimensions of the rapid folding doors are calculated measuring the free opening space when the door is opened.

Standard available sizes: maximum standard width 7000mm, maximum standard height 6500mm, larger sizes on request.

The overall dimensions of the door-posts are 160 mm each side, the upper beam has a minimum dimension of 800 mm (1000 mm with largest doors).

The size of the operator varies according to the size of the door, please consult the technical data sheets.

The gearmotor, 400V three-phase, 50Hz, 0.5 kW, IP 55, is complete with electromechanical brake, digital programmer and three-phase plug for connection to the power supply. The larger doors have oversized gearmotor and controls.
