Avantgard self-repairing roll-up doors

High-speed roll-up doors in PVC fabric: self-repairing door, made by hot-dip galvanized sheet metal and aluminum profiles assembled without welding.

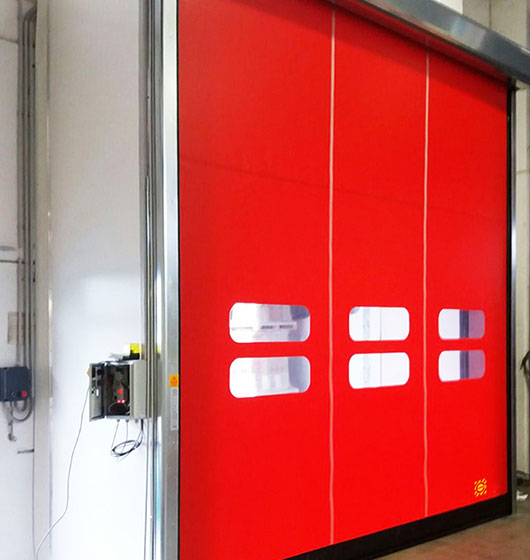

Campisa “Avantgarde” industrial high-speed door has been designed for all companies that need a fast, safe and self-resetting roll-up closure.

The Avantgarde roll-up door can be used for internal and external application, it is extremely resistant, and requires little or no maintenance.

The Avantgarde high-speed roll-up door has a 900 g / m² polyester fabric, PVC coated, which does not require windproof reinforcement bars because it remains tensioned between the two side door posts within which it slides.

The AVANTGARDE rapid roll-up flexible door includes:

• Metallic structure in galvanized steel with fabric guide within the two door posts.
• 900 g / m² polyester fabric that guarantees excellent wind resistance.
• A transparent PVC window-porthole at eye level (additional windows are optional).
• A wide range of RAL colors also for insulated sheets.

GEAR MOTOR

• Gearmotor with electromechanical brake and electronic programmer.
• Crank for emergency opening maneuverable from the ground.

CONTROLS AND SAFETY DEVICES

• The main panel is inside a box with IP55 protection, it is pre-wired to the gearmotor and includes an emergency switch.  In case of emergency the motor and the panel can be easily controlled, and the door can be totally opened. (For large and high doors, we foresee an aerial walkway that allows direct control of the motors on top of the structure).
• Photocell barriers and a wireless safety rib, incorporated in lower edge of the fabric, are also foreseen for safety purposes. All controls are according to CE standards,

WIND RESISTANCE

Class 2.

• Wireless safety rib (optional) incorporated in the lower part of the fabric.
• Additional windows.
• Insulated fabric.
• Front motor.
• Automatic reopening.

Rapid roll-up doors manufactured in compliance with the EN 13241 Product Standard. Complete with CE marking.

• Fabric overlapping sensor in the crossbar.
• Sensitive edge: polarized light reflection photocell that requires wiring on one side of the device.

The nominal dimensions of the rapid roll-up doors are calculated measuring the free opening space when the door is opened.

Available measures: maximum standard width 6000mm, maximum standard height 5400mm.

The overall dimensions of the doorposts are 125 mm each side, the upper beam has a dimension of 450 mm. The size of the operator varies according to the size of the door, please consult the technical data sheets.

The gearmotor, 400V three-phase, 50Hz, from 0.55 to 1.1 kW (depending on the size of the door), IP 55, is complete with electromechanical brake, digital programmer and three-phase plug for connection to the power supply.
